DZK Zoning Kit

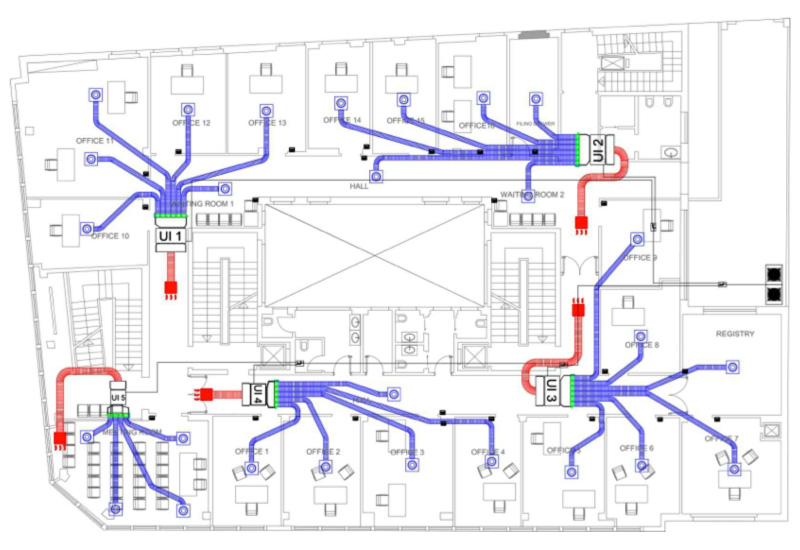

The DZK Zoning Kit increases the flexibility of VRV and SkyAir system applications by allowing multiple individually controlled zones to be served by one indoor unit fan coil. Up to 6 separate dampers supply variable air flow to the zones in response to individual zone thermostats.
Overview
| The DZK integrates seamlessly with the Daikin indoor unit fan coil and system controls. A complete Daikin Zoning Kit consists of a Zoning Box, at least one Wired thermostat, optional Wireless and Wireless Lite thermostats. An optional BACnet Interface is also available. The optional BACnet Hub provides Wi-Fi connectivity via a smart device or can be connected to a Building Management System (BMS) using the BACnet IP or BACnet MSTP protocols. The DZK BACnet Hub allows each DZK zone to be monitored and controlled individually by the Building Management System for maximum flexibility in light commercial and commercial applications. |  |  |
Daikin provides the quality and service you deserve.
Warranty Protection
Outstanding limited warranties reflect Daikin’s high-quality manufacturing standards.*
Features & Specs
Explore product manuals, warranty details, and other essential resources.
Features
- Increased flexibility of the Daikin VRV and SkyAir systems. One indoor unit fan coil can serve several individually
- controlled zones (room, part of a room, or several rooms)
- Integrates seamlessly with the indoor unit fan coil and system controls of the Daikin VRV and SkyAir systems
- Continuous Room-by-room temperature control due to modulating zone dampers
- Ideal solution for residential, office, and light commercial applications
- Flexible and scalable - with DZK an indoor fan unit can serve up to 6 zones
- Cost efficient - DZK enables equipment layout optimized for specific zone requirements
- Easy to install – designed to mount directly to:
- >FXMQ_PB series
- FXSQ_TA series
- FBQ series
- FDMQ series
- Damper positions can be set to minimum and maximum positions to meet local requirements
- Easy integration of up to 2-stage supplemental electric heat
Advantages of the DZK Zoning Kit
- Reduces system hardware cost - use fewer Indoor units to serve more zones
- Increases comfort levels by allowing more individual zone control
- Reduces installation expense and maintenance costs
- Reduces the amount of refrigerant required in the installation
- Increases the flexibility of the VRV and SkyAir system
The DZK Zoning Kit includes:

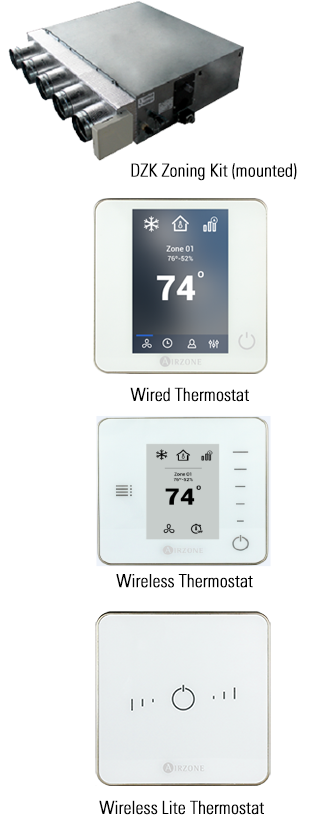

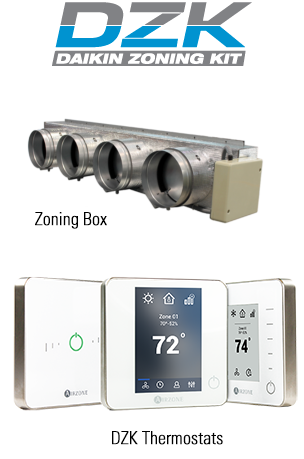

- A Zoning Box (mounted on the Indoor Unit discharge side), a wired Main thermostat, and optional wired and wireless Zone thermostats.
- The Zoning Box is a plenum with motorized zone dampers that modulate the conditioned air flow into each zone through standard ductwork, in response to the demand from the individual Zone Thermostat.
- The Main thermostat is a wired color touch display master unit used to configure the DZK system. It can also be used as a thermostat for one of the zones.
- The Wireless zone thermostat features a backlit, low-energy E-ink screen with capacitive touch buttons. The user can view the current room temperature and relative humidity, adjust the zone set point temperature, activate local ventilation, and more.
- The Wireless Lite zone thermostat offers a sleek, simple user interface to adjust the local zone set point temperature using LED-lit capacitive touch buttons.
- The DZK BACnet Hub is an optional adaptor that provides Wi-Fi and BACnet communication for monitoring and control.
